What Are Beadlock Wheels?
Introduction
If you’re passionate about off-roading in the UAE dunes — from Liwa to Sweihan — you’ve probably heard the term “Beadlock wheels.” But what are they exactly? Do you really need them? And more importantly, where can you get high-quality beadlock rims in Dubai or Sharjah?
At WheelsAE.com, we specialize in off-road setups, so here’s everything you need to know about beadlock wheels — from how they work to whether you should invest in a set.
⸻
What Is a Beadlock Wheel?

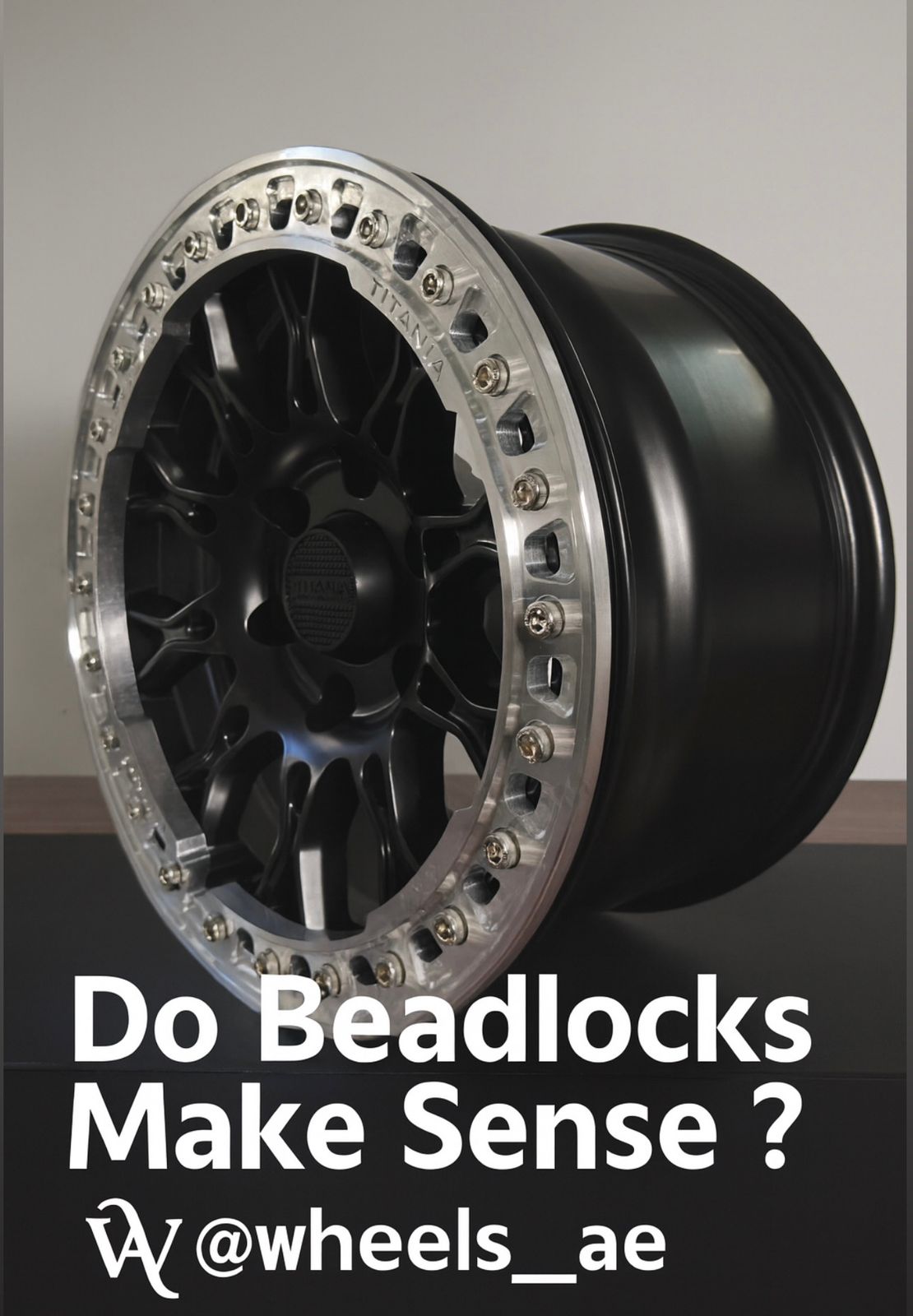

A beadlock wheel is a special type of rim designed to mechanically clamp the tire bead in place using an outer ring and bolts. This prevents the tire from unseating (popping off) when running very low air pressures — which is a common practice in desert off-roading to improve grip and flotation.
Unlike traditional wheels, where air pressure alone keeps the tire sealed to the rim, beadlocks physically bolt the tire to the wheel.
⸻
Why Do Off-Roaders Use Beadlocks?
Lower air pressure = more traction. But it also increases the risk of de-beading, especially on rocky terrain or while rock crawling.
Beadlocks solve this by:
• Allowing ultra-low PSI without risk
• Keeping tire securely mounted in aggressive conditions
• Improving safety in high-torque situations
• Preventing rollover accidents due to tire separation
If you’re a serious off-roader or use your vehicle for competitive rock crawling, dune bashing, or trail abuse, beadlocks can be a game-changer.
⸻
⚠️ Are Beadlocks Legal for Road Use in UAE?
In most countries (including UAE), true beadlock wheels are not street-legal unless they pass specific regulations — due to safety and certification concerns.
✅ Some manufacturers now offer “street-legal” beadlock-style wheels that visually look the same but aren’t functional beadlocks.
If you’re driving your 4×4 daily and only occasionally hitting the dunes, you may prefer simulated beadlocks instead.
💡 WheelsAE Tip: Use beadlocks for weekend off-road events, but have a second set of regular wheels for daily driving.
⸻
How Do Beadlocks Work?
1. The tire is placed over the inner wheel barrel
2. The outer beadlock ring is aligned on the outside of the tire bead
3. Grade-8 bolts are torqued in a star pattern to clamp the tire
4. The pressure keeps the tire locked — even at 8 PSI!
Most beadlocks come with 16 to 24 bolts, depending on wheel size. You’ll need a torque wrench to install them properly (usually ~20 ft-lbs per bolt).
⸻
Are There Different Types?
Yes — the most common types include:
• Single Beadlock (locks outer bead only)
• Double Beadlock (for extreme off-roading; locks both inner and outer beads)
• Internal Beadlock (inflatable ring inside the tire — rare, high-end)
• Simulated Beadlock (just for aesthetics — no functional lock)
⸻
Tuning & Customization Possibilities
With beadlock wheels, customization is huge:
• Change beadlock ring color (red, gold, black, titanium)
• Add engraved logos
• Choose bolt styles (hex, button head)
• Choose between forged aluminum or cast alloy
💬 At WheelsAE.com, we offer custom beadlock wheels in 17” to 20” sizes for Toyota Land Cruiser, Nissan Patrol, Jeep Wrangler, Ford Raptor, and more.
⸻
Beadlock Wheels Available at WheelsAE
We currently stock & customize:
• 17×8.5 and 17×9.0 Beadlocks
• PCD: 6×139.7 | 5×127 | 5×150 | 6×114.3
• Center Bore: 106.1 / 110.1 / 112.1 / 95.1 / 108
• Colors: Matte Black, Gunmetal, Bronze, Machined Lip
• Rim Type: Beadlock (functional) or Simulated Beadlock
💥 All wheels can be powder-coated or laser-etched with your team name, logo, or flag.
📦 Fast delivery across UAE + GCC.
⸻
Should You Buy Beadlocks?
You should consider beadlock wheels if:
• You air down below 15 PSI regularly
• You do serious off-roading on dunes or rocks
• You want maximum safety and style for your build
• You want that rugged, aggressive look
But if you’re a casual off-roader or daily driver, standard alloy wheels or simulated beadlocks may be a better option.
⸻
Summary: Why Beadlocks Matter for Off-Roading
Beadlock wheels are a game-changer for serious off-road enthusiasts. While traditional wheels rely solely on tire pressure to keep the bead seated, beadlocks physically clamp the tire bead to the rim, allowing for ultra-low tire pressures without the risk of the tire slipping off. This is especially useful in desert dunes, rocky trails, and soft sand—conditions commonly found in the UAE and GCC.
Lowering tire pressure increases the tire’s surface contact, offering better grip, smoother ride quality, and improved control. Beadlocks provide that advantage without sacrificing safety. Yes, they’re heavier and often not street-legal in many countries, but for drivers who demand maximum traction, beadlocks are worth it.
If you’re building a purpose-driven 4×4 or prepping for the next Liwa challenge, beadlock rims are the serious upgrade you need. For everyday use or mixed driving, consider simulated beadlocks that offer the look without the complexity.
⸻
